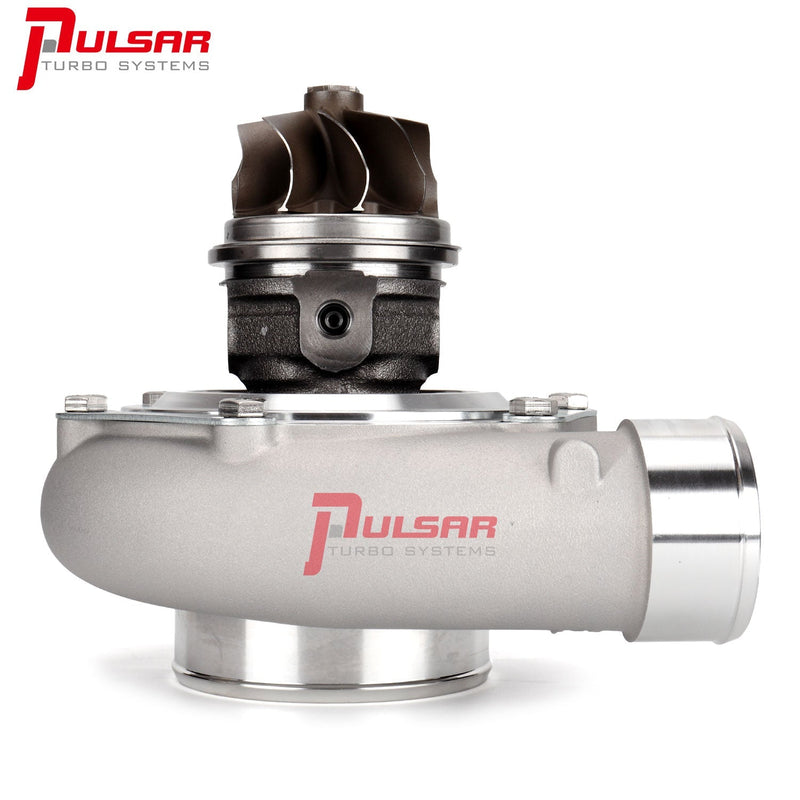

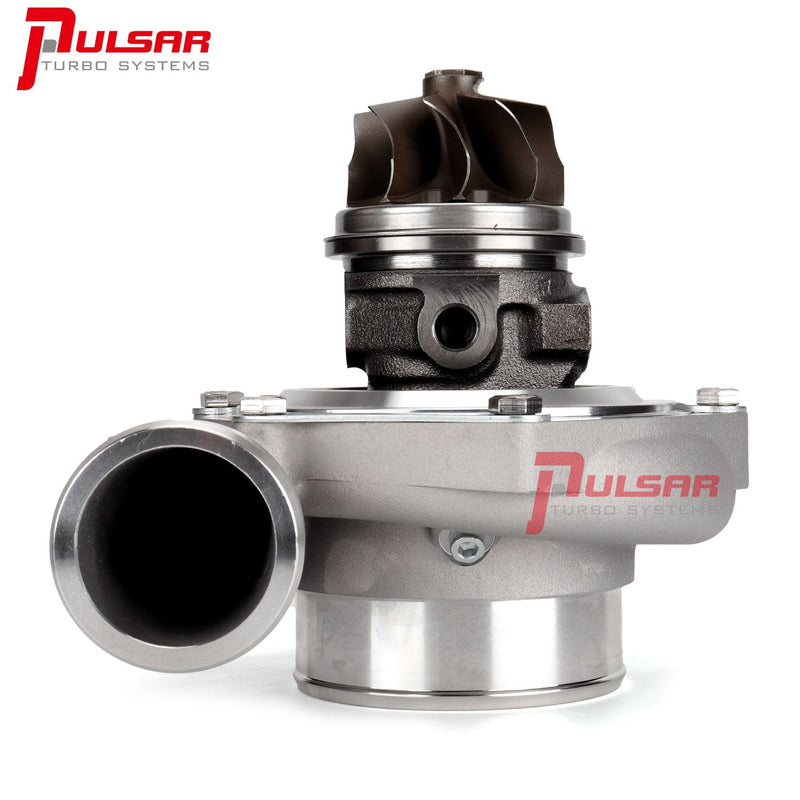

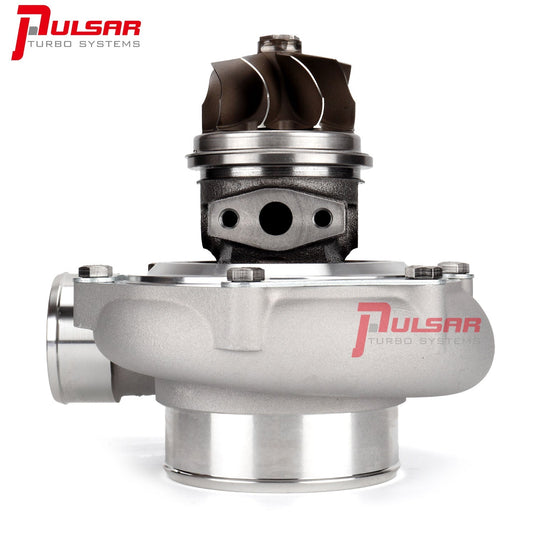

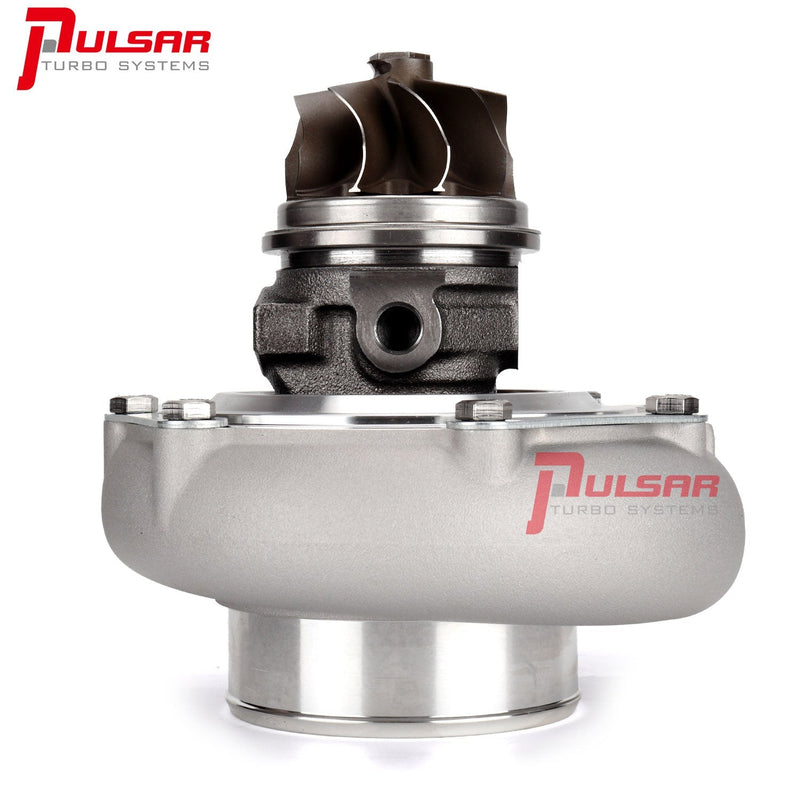

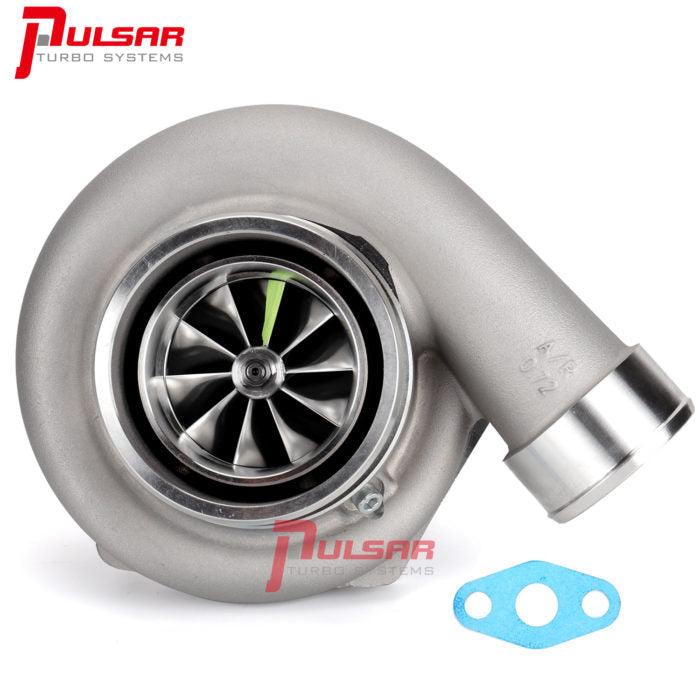

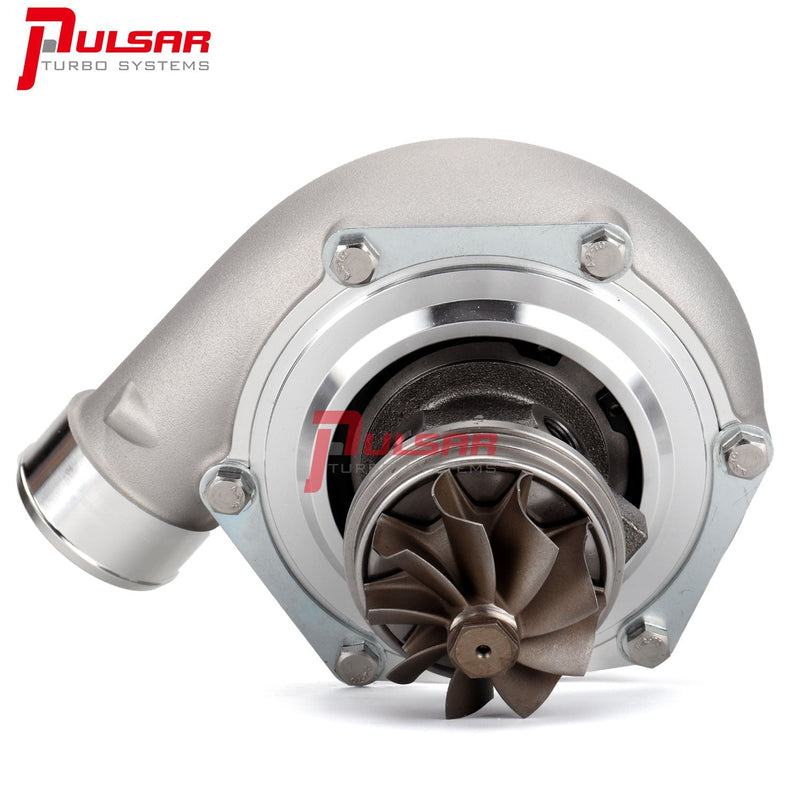

This is an upgrade high flow turbocharger supercore to replace the factory GT3576R / GT3582R turbos, it suits Ford Falcon XR6 BA/BF/FG.
Compressor Specifications
Inducer: 67mm
Exducer: 82mm
A/R: 0.72
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62.3mm
- Supercore, without turbine housing
- New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
- New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
- Genuine structure and rebuildable dual ceramic ball bearing system
- Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
