Horsepower: 300 - 550
Displacement: 1.4L - 3.0L
Compressor Specifications
Inducer: 48mm
Exducer: 60mm
Compressor Inlet: 3" Slip fit

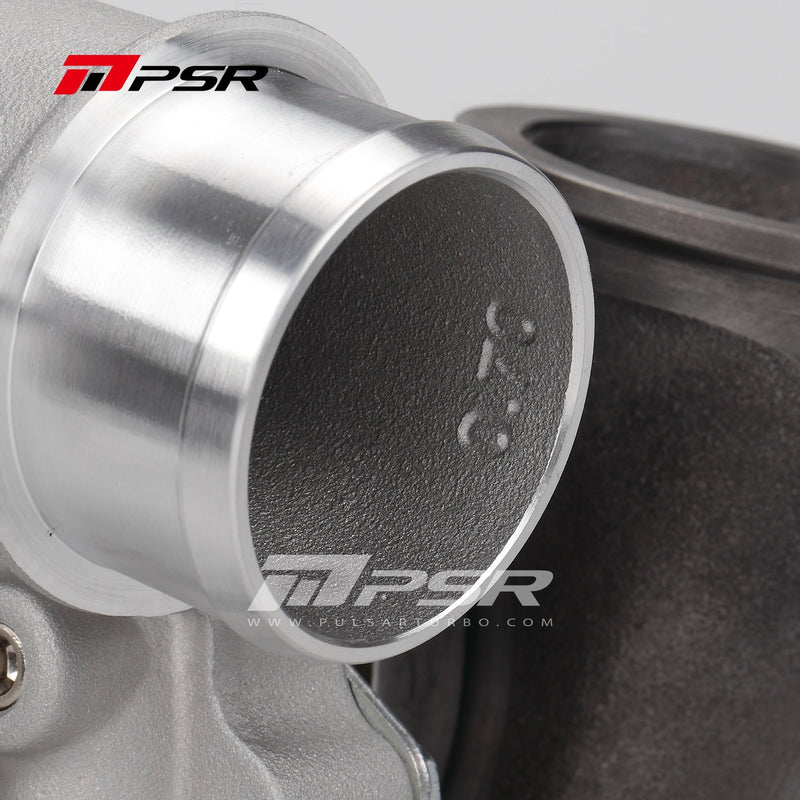

Compressor Outlet: 2" Slip fit
Turbine Specifications
Inducer: 54mm
Exducer: 49mm
A/R: 0.49 / 0.72 / 0.92 (optional)
Turbine Inlet: T25 / T3 / 2.5″ V-Band (optional)

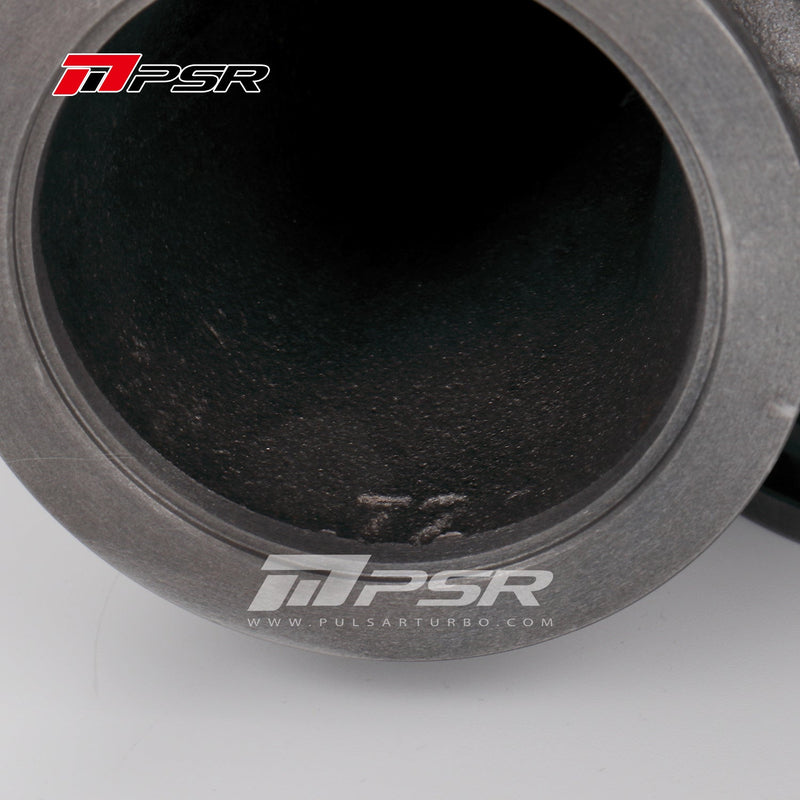

Turbine Outlet: 3″ V-Band

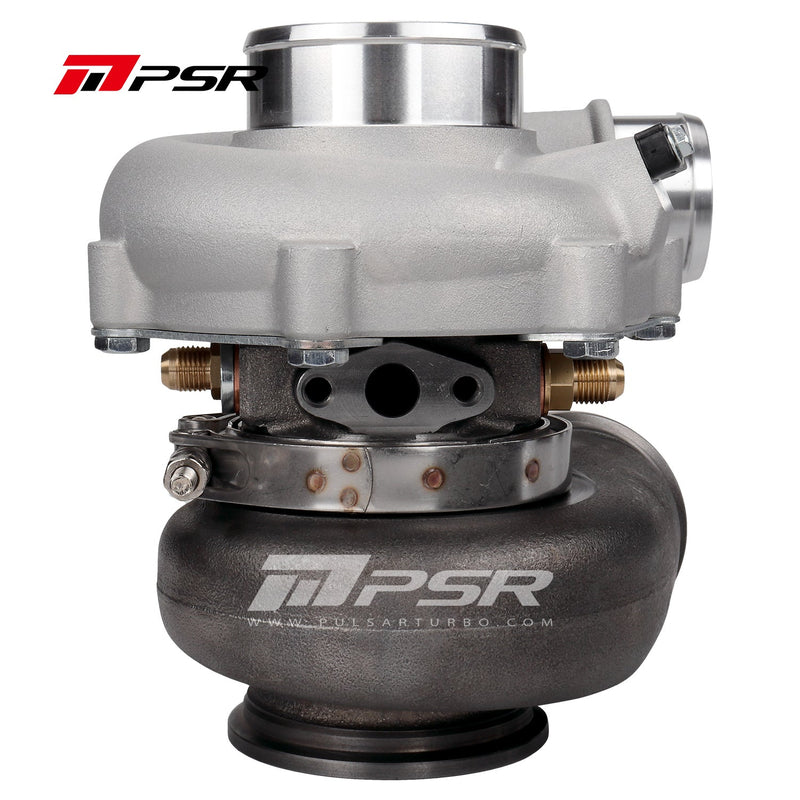

Cooling Specifications
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
- Dual Ceramic ball bearing system provides optimal turbo response and

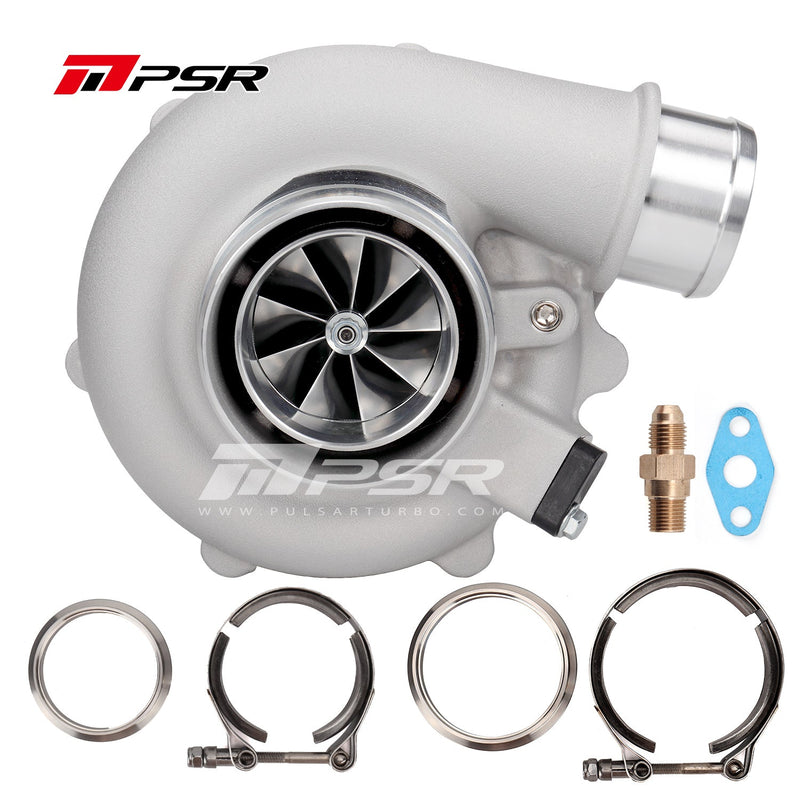

better durability by reducing the shaft-motion - 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

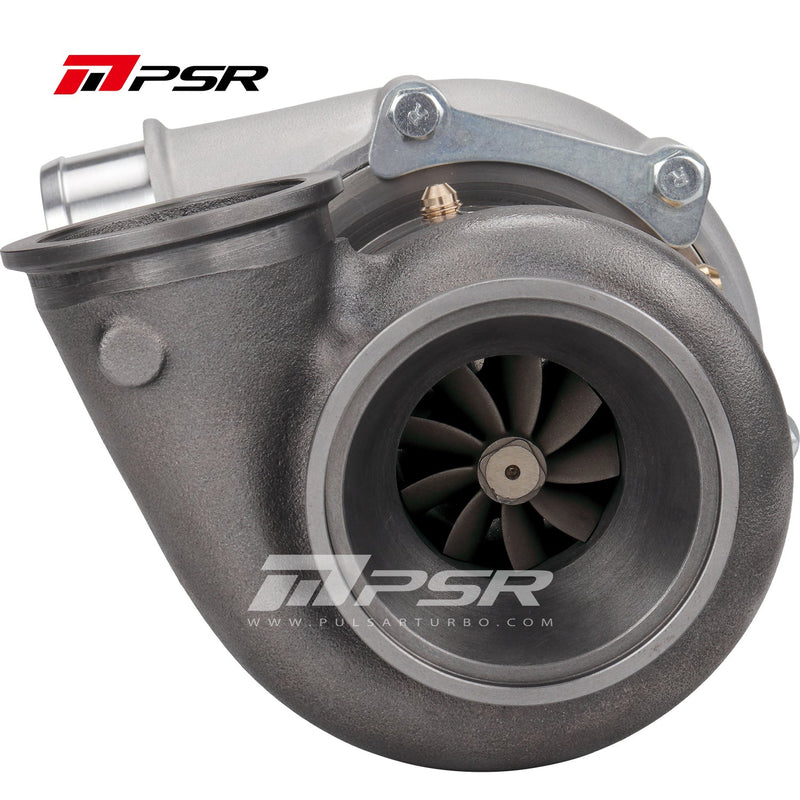

- 9 Blade G-Aero Inconel 713c Turbine Wheel

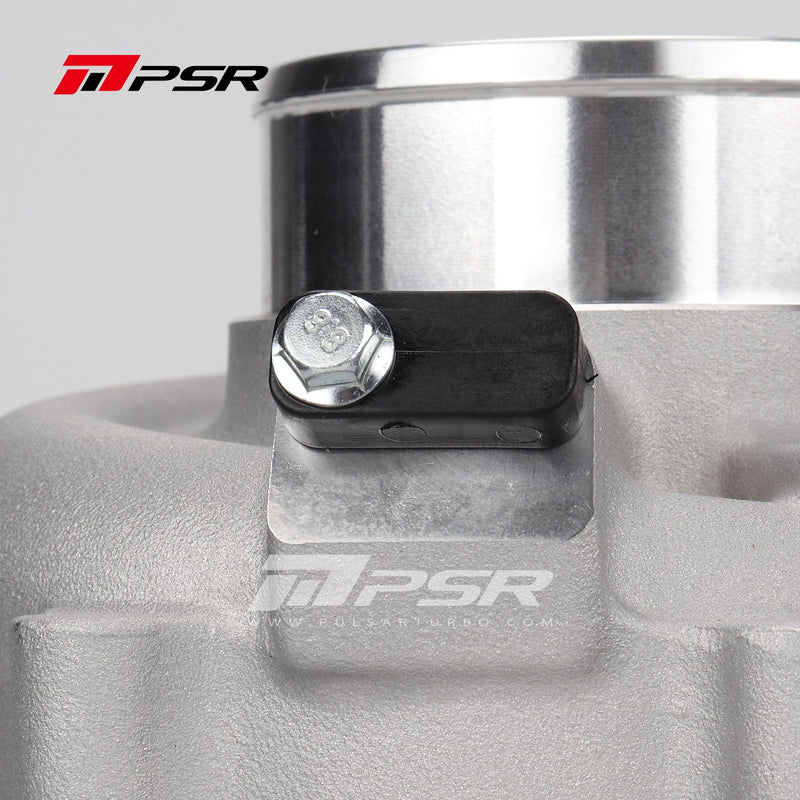

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator(12-14 psi)
