Compressor Specifications
Inducer: 58mm
Exducer: 76mm
Compressor Inlet: 4″ Slip fit

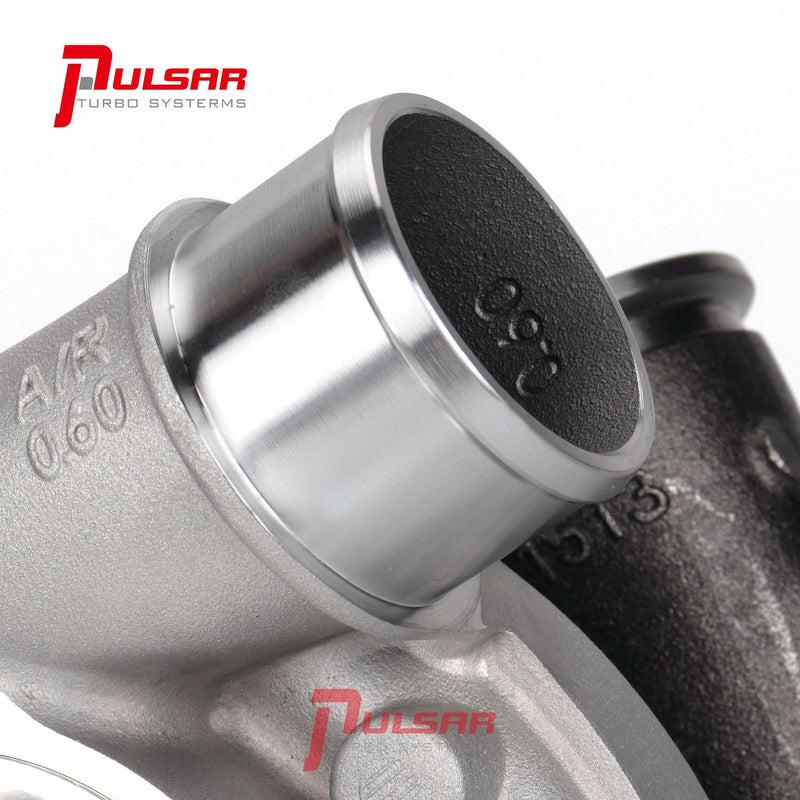

Compressor Outlet: 2″ Slip fit
Turbine Specifications
Inducer: 60mm
Exducer: 55mm
A/R: 0.62 / 0.82 / 0.83 (optional)
Turbine Inlet: T3 / V-Band (optional)

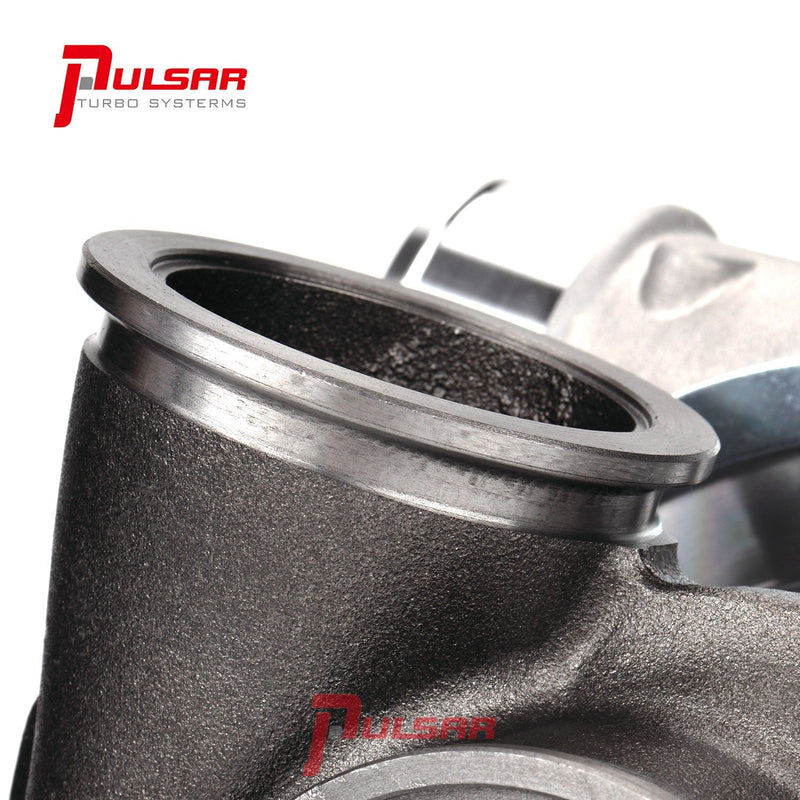

Turbine Outlet: V-Band
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
- Dual Ceramic Ball Bearing System

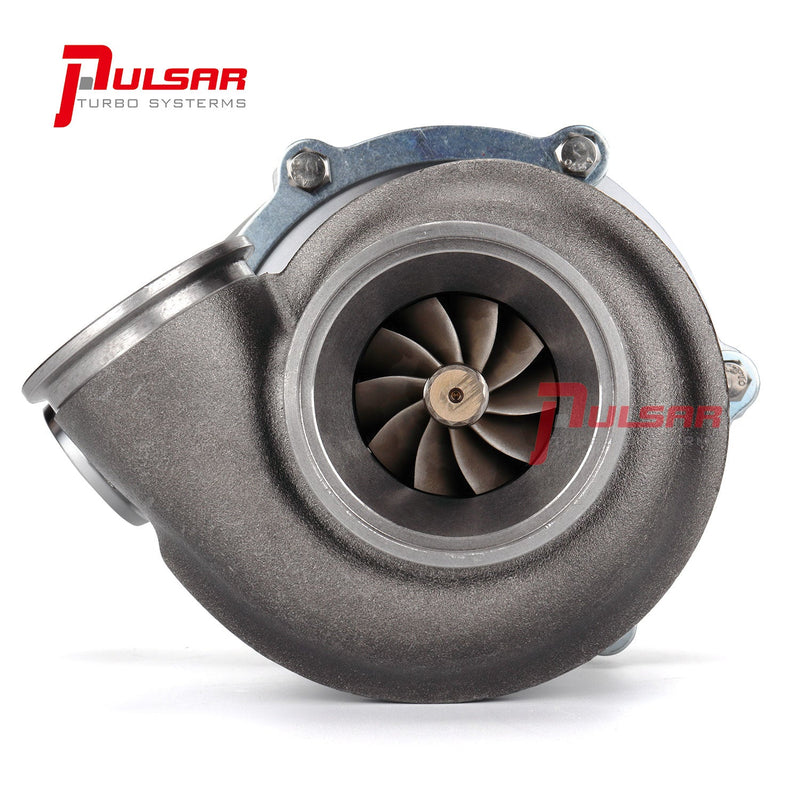

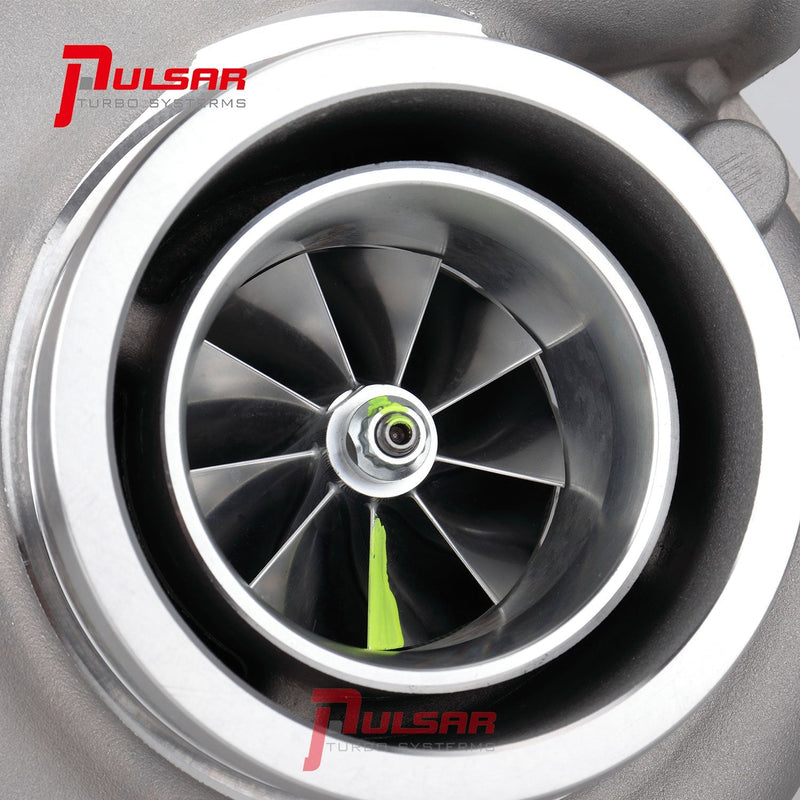

- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel

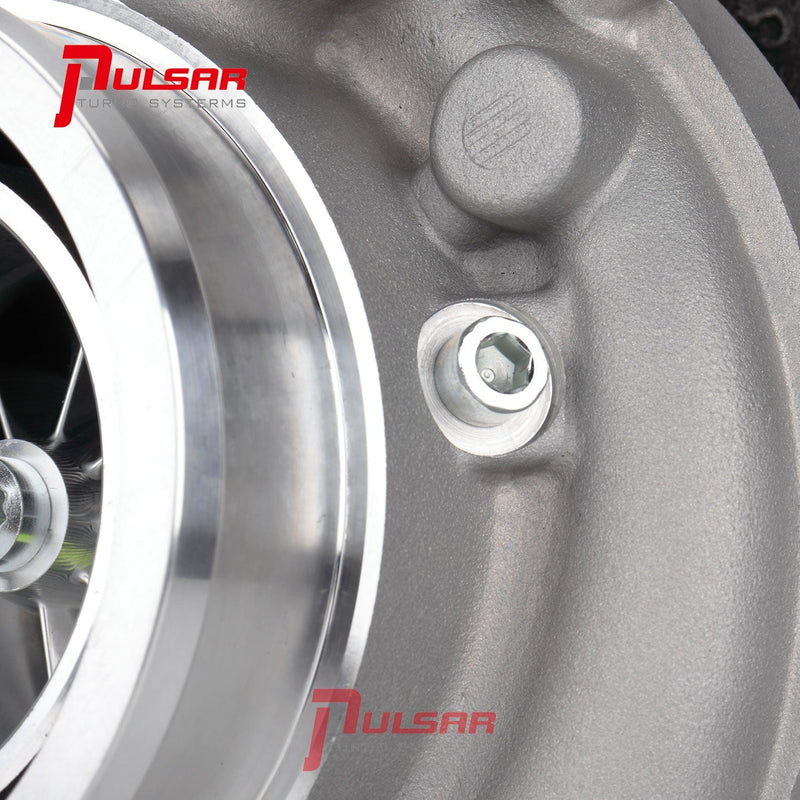

- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

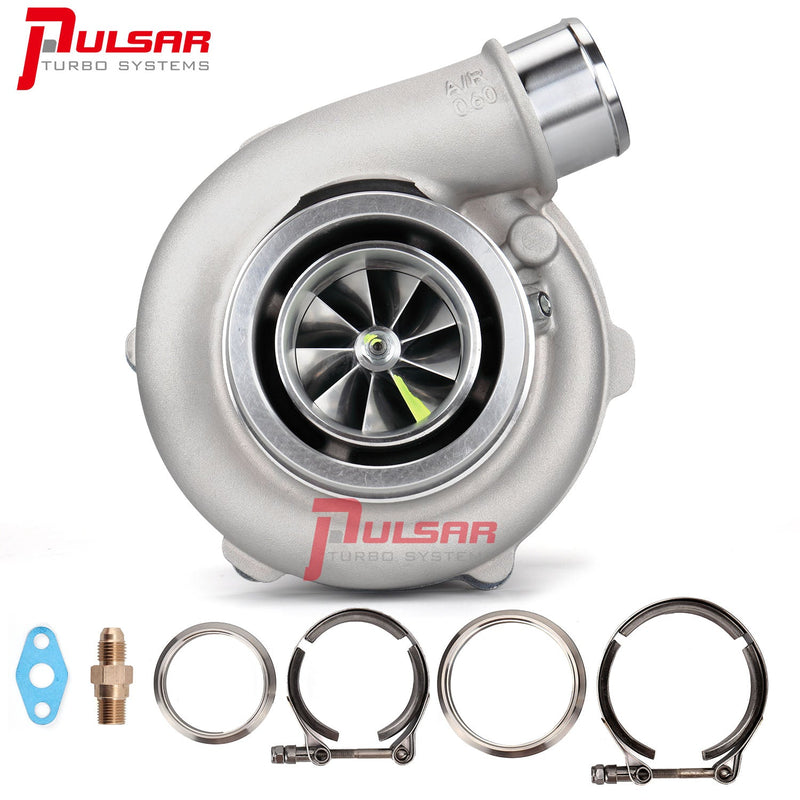

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~65 lb/min, rated @ 650 FWHP
