Compressor Specifications
Inducer: 58mm
Exducer: 76mm
Compressor Inlet: 4″ Slip fit
Compressor Outlet: 2″ Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62mm
A/R: 0.63 / 0.82 / 0.83 / 1.01 / 1.06 / (optional)
Turbine Inlet: T3 / T4 / V-Band (optional)
Turbine Outlet: V-Band
Cooling Specifications
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
- Dual ceramic ball bearing system

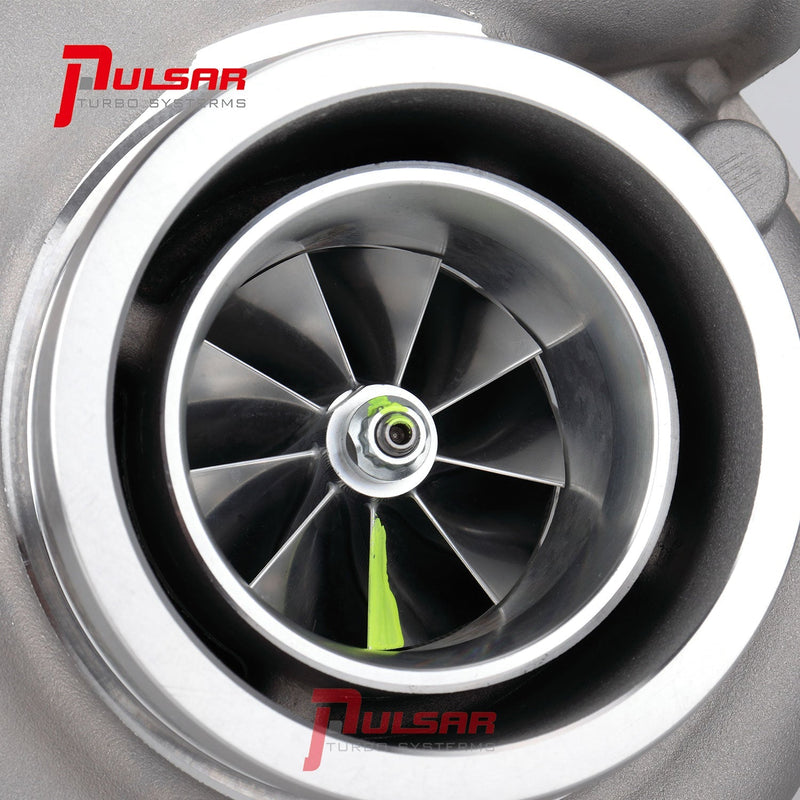

- 58*76mm Billet compressor wheel
- 68*62mm Gen2 turbine wheel
- 0.83, 1.01 A/R dual v-band turbine housing,
- T3 0.63, 0.82 V-Band outlet turbine housing available, V-Band Flange kit(s) for the exhaust housing included

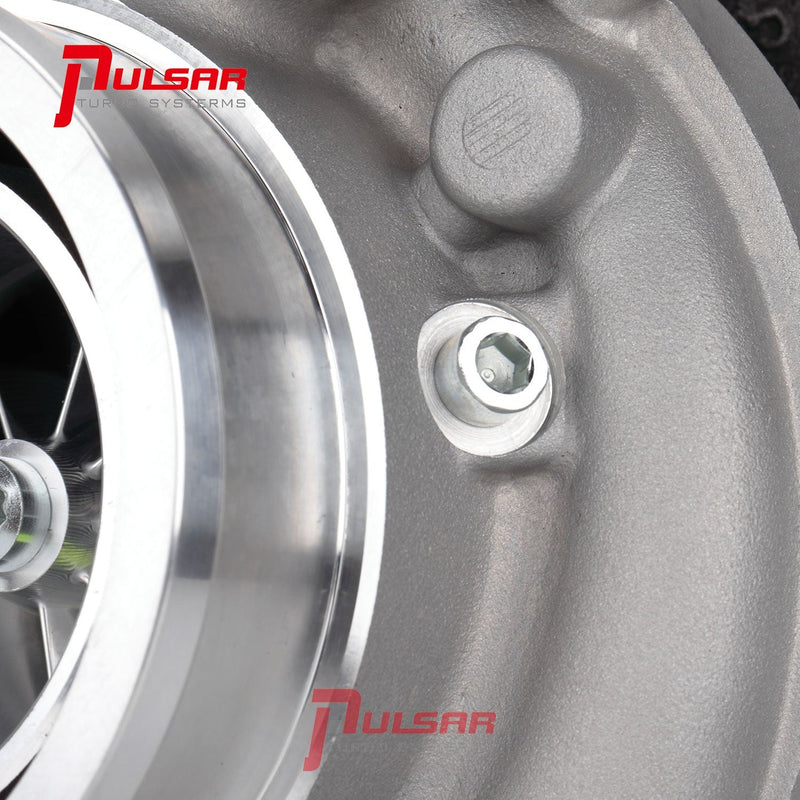

- Gen2 cover integrated with the speed sensor port
