Compressor Specifications
Inducer: 66mm
Exducer: 82mm
Compressor Inlet: 4″ Slip fit

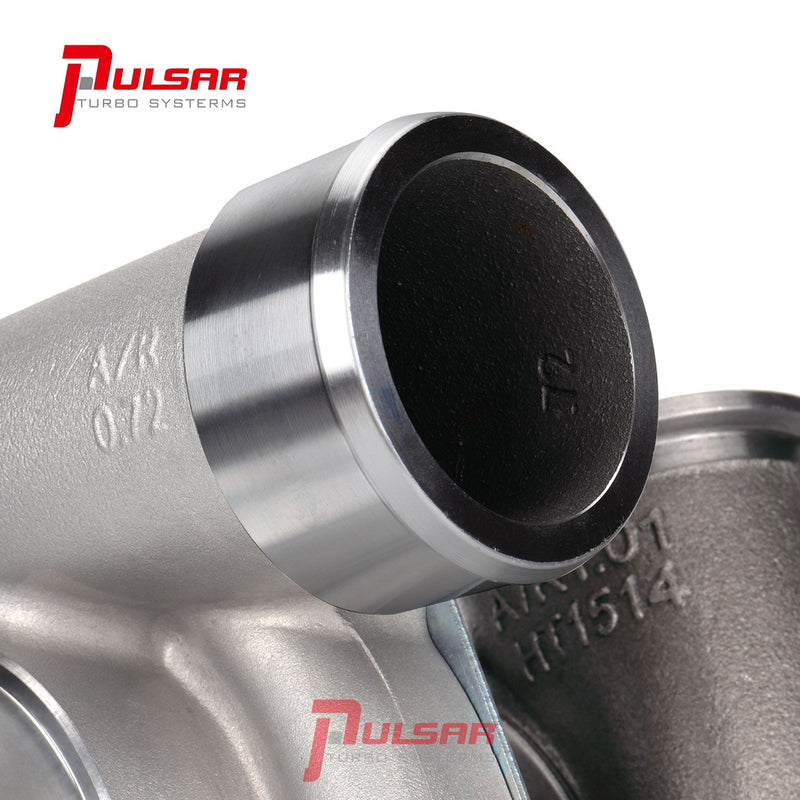

Compressor Outlet: 2″ Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62mm
A/R: 0.63 / 0.82 / 0.83 / 1.01 / 1.06 / (optional)
Turbine Inlet: T3 / T4 / V-Band (optional)
Turbine Outlet: V-Band
Cooling Specifications
Oil Feed: -4 AN connect to the Oil Restrictor

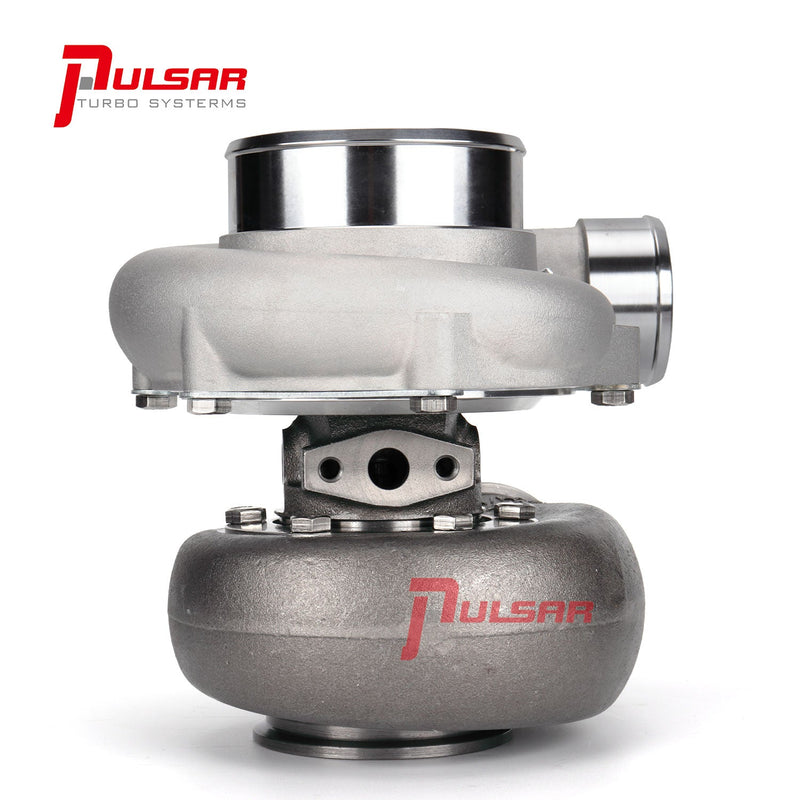

Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel

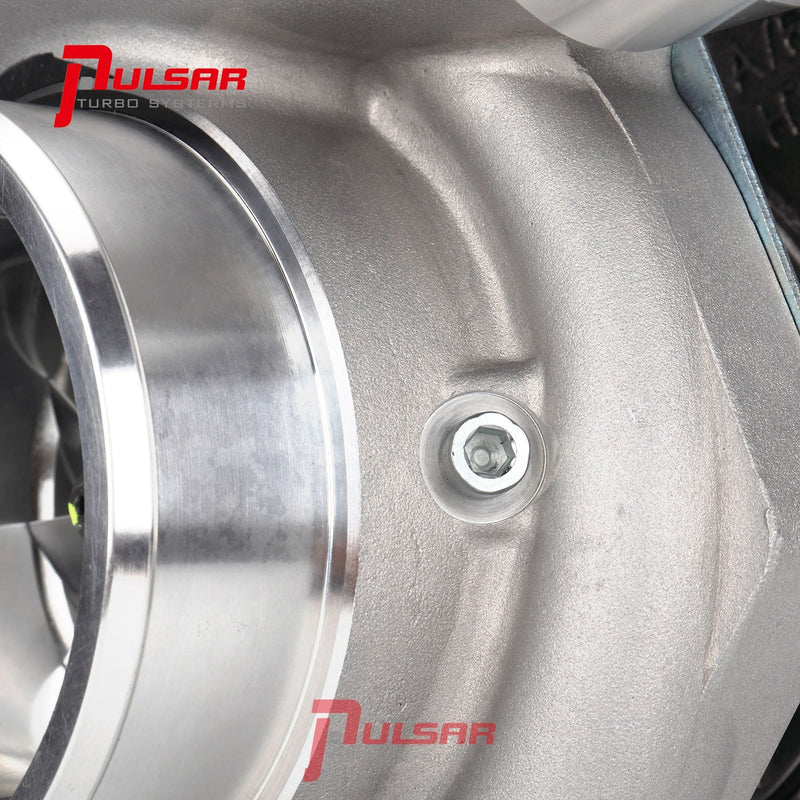

- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

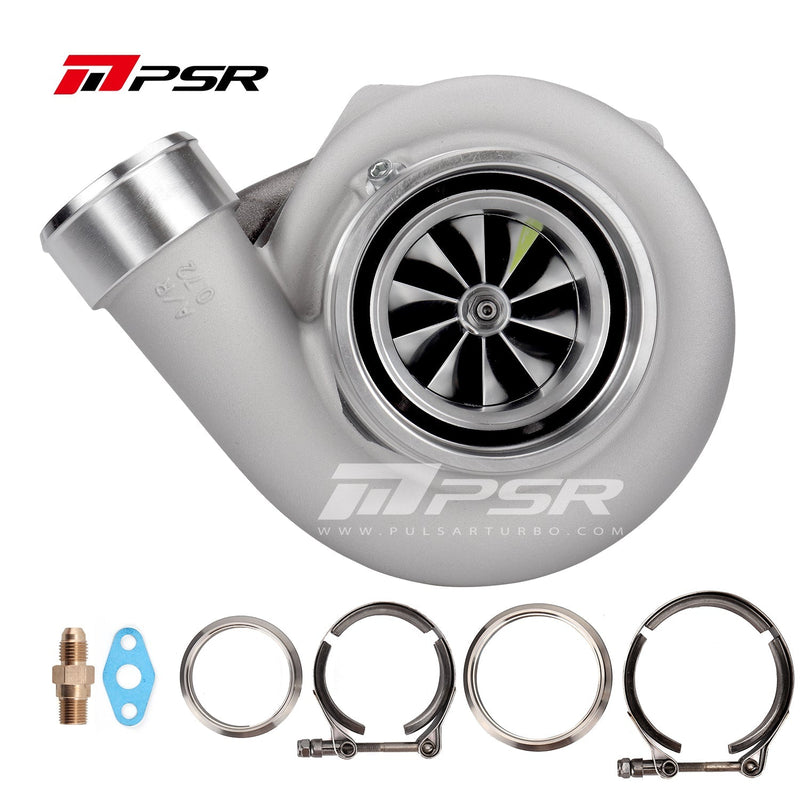

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
